ESS Container
CE166280-L-H
- 46592Wh Nominal Capacity
- IP65 dual firefighting and anti-explosion design
- Low-temperature difference to 3℃, extend battery lifetime
- 30% higher energy density than air cooling system, decrease installation area
- Realtime battery state monitoring, dynamic adjustment of energy management strategy
- Smart liquid cooling temperature control system, decrease 20% auxiliary power supply, saveoperation cost
Why choose us?
We have rich service experience and research and development technology.
Stable supply chain
We have our own battery pack and inverter factories with more than 1.5GWh of Li-FePO4 battery packs and an annual production capacity of 80,000 inverters.
Local Warehouse
We will set up warehouses in mainstream markets to cover the surrounding area of 200-300 kilometers.
Accept Customization
We support OEM and ODM.
Excellent After-sales Service
We have more than 20 people after-sales team, which can reply any of your questions in 7*24 hours.
Strong R&D Team
We have a R&D team of more than 30 people, and our engineers have more than 10 years of R&D experience in top companies in the industry.
Competitive Payment Terms
We support a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and so on.
Technical Data
| Model | CE166280-L-H |
| Cell Capacity (Ah) | 280 |
| Norminal Voltage (V) | 166.4 |
| Nominal Energy (Wh) | 46,592 |
| Usable Energy (Wh) | 41,933 |
| Operation Voltage Range (V) | 135.2~187.2 |
| Standard Charge Current (A) | 140 |
| Standard Discharge Current (A) | 140 |
| Max. Charge Current (A) | 140 |
| Max. Discharge Current (A) | 140 |
| Temperature Range | Charge Temperature: 0~55°C Discharge Temperature: -20~55°C |
| Operation Humidity | 20~95%RH (No condensing) |
| Protection Degree | IP65 |
| Dimension (mm) | 808W ×1,172D ×242H |
| Net Weight (kg) | 350 |
| Certification | CE, UN38.3 |
| Battery Rack | |
| Connection Series | 1P52S ×8 |
| Norminal Voltage (V) | 1,331 |
| Nominal Energy (kWh) | 372.7 |
| Usable Energy (kWh) | 335.5 |
| Operation Voltage Range (V) | 1,081.6~1,497.6@(0~55°C) |
| Standard Charge Current (A) | 140 |
| Standard Discharge Current (A) | 140 |
| Max. Charge Current (A) | 140 |
| Max. Discharge Current (A) | 140 |
| Dimension (mm) | 925W ×1,180D ×2,390H |
| Approximate Weight (kg) | 3,000 |
| Life Cycles | 6,000 cycles@80% DoD |
| Waranty | 5 years |
Our gallery
Product Details
Different energy meet the vast majority of scenarios. We provide on-site installation and usage guidance services, making it easy for you to buy and use.
Product Introduction
If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.
Higher Energy Density, Decrease Installation Area
CHISAGE ESS container features 30% higher energy density than traditional air-cooled systems, it reduces the space required for installation and improves energy storage efficiency.
Low-temperature Difference, Extend Battery Lifetime
CHISAGE ESS container reduces the temperature difference to 3°C effectively extends the life of the battery. This design reduces the impact of temperature variations on the battery, which is conducive to improving the life and stability of the battery.
Unleash the potential for unlimited possibilities!
Click to learn more about us and move towards a new era of energy together!
Application Cases
We have served thousands of customers and have rich service experience.
China Installation Case

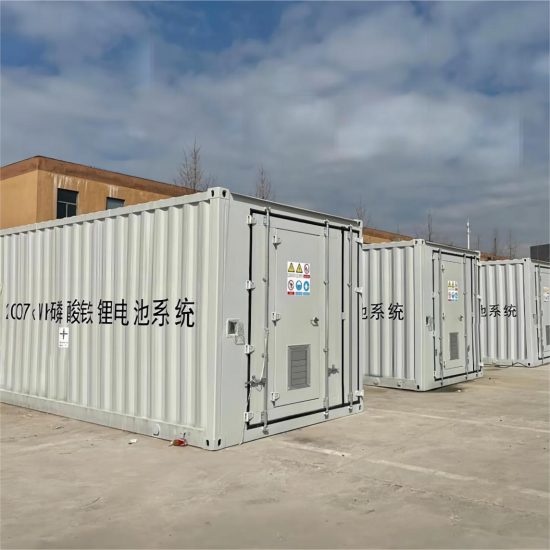

2MWh ESS Container Installation Case in China
China Installation Case

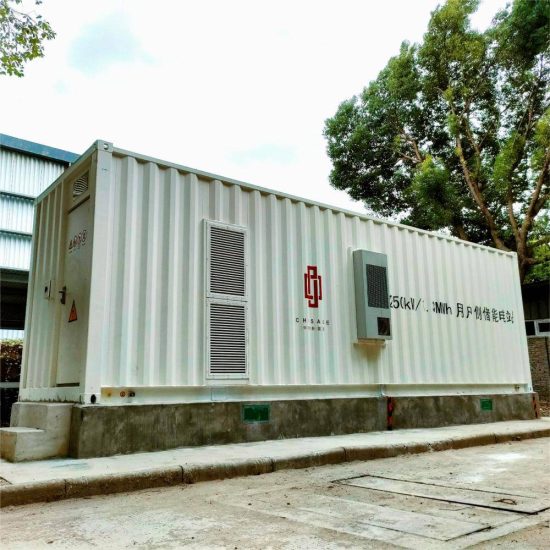

1.3MWh ESS Container Installation Case in China
What Our Customers Have to Say
Real feedback from users can better reflect the professionalism of our products.
FAQ
Most frequent questions and answers
CHISAGE ESS supports a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.
CHISAGE ESS is a factory 50 kilometers away from Ningbo port, which is very convenient for loading and shipping, and saves a lot of transportation cost. We have a R&D and engineering team of more than 30 people for energy storage systems and solar inverter technology. Now we have over 1.5GWh manufacturing capacity for lithium iron phosphate battery packs and 1GW for inverters.
We purchase Haichen cells which is the Top brand in China, and assemble them in our workshop.
CHISAGE ESS welcomes you to test our quality by sample. Samples will be prepared and sent out within 7 working days after the specification is confirmed.
