HOME BATTERY PACK
CE48100-R
- 5kWh Nominal Energy
- High inverter compatibility
- Safe LiFePO4 rechargeable battery
- Support max. 15pcs batteries in parallel
- Without toxic heavy metal or caustic materials
- Higher usable energy ratio, less self-consumption
Why choose us?
We have rich service experience and research and development technology.
Stable supply chain
We have our own battery pack and inverter factories with more than 1.5GWh of Li-FePO4 battery packs and an annual production capacity of 80,000 inverters.
Local Warehouse
We will set up warehouses in mainstream markets to cover the surrounding area of 200-300 kilometers.
Accept Customization
We support OEM and ODM.
Excellent After-sales Service
We have more than 20 people after-sales team, which can reply any of your questions in 7*24 hours.
Strong R&D Team
We have a R&D team of more than 30 people, and our engineers have more than 10 years of R&D experience in top companies in the industry.
Competitive Payment Terms
We support a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and so on.
Technical Data
| Model | CE48100-R |
| Nominal Energy (Wh) | 5 120 |
| Usable Energy (Wh) | 4600 |
| Nominal Capacity (Ah) | 100 |
| Nominal Voltage (V) | 51.2 |
| Operation Voltage Range (V) | 40~58.4 |
| Standard Charge Current (A) | 50 |
| Standard Discharge Current (A) | 50 |
| Max. Charge Current (A) | 50 |
| Max. Discharge Current (A) | 100 |
| Max. Parallel Quantities | 15 |
| Operation Temperature | Charge Temperature： 0°C~55°C Discharge Temperature： -20°C~55°C |
| Working Humidity | 20~80%RH (No condensing) |
| Protection Degree | IP20 |
| Dimension (mm) | 435W ×450D ×177H |
| Net Weight (kg) | 52 |
| Installation | Rack mounted |
| Certification | CE, UN38.3, IEC62619 |
| Communication | CAN, RS485 |
| Lifetime | 6, 000 Cycles@80% DOD |
| Warranty | 5 Years |
Our gallery
Product Details
Different energy meet the vast majority of scenarios. We provide on-site installation and usage guidance services, making it easy for you to buy and use.
Product Introduction
If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.
Support to 15PCS Battery in Parallel
Chisage ESS home battery pack supports parallel connection of up to 15 batteries, allowing you to expand your battery capacity and increase power output according to your energy needs.
High Inverter Compatibity
Chisage ESS home battery pack support high compatibility with a wide range of inverters, ensuring seamless integration into your existing solar power system or home energy setup.
Unleash the potential for unlimited possibilities!
Click to learn more about us and move towards a new era of energy together!
Application Cases
We have served thousands of customers and have rich service experience.

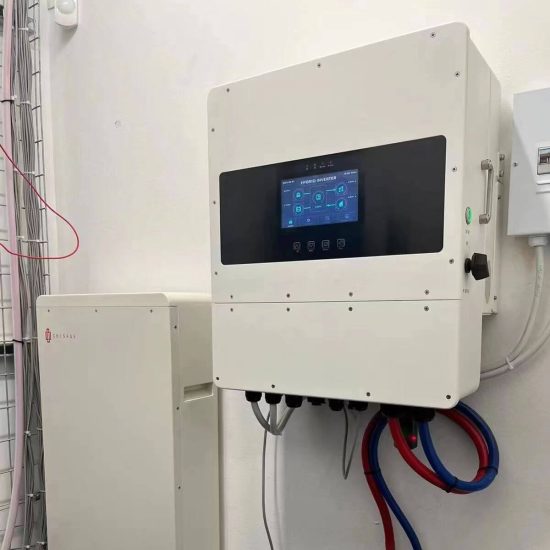

South Africa Installation Case
12kW Solar Energy Storage System in South Africa
Lebanon Installation Case
24kW Solar Energy Storage System in Lebanon
What Our Customers Have to Say
Real feedback from users can better reflect the professionalism of our products.
FAQ
Most frequent questions and answers
CHISAGE ESS supports a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.
CHISAGE ESS is a factory 50 kilometers away from Ningbo port, which is very convenient for loading and shipping, and saves a lot of transportation cost. We have a R&D and engineering team of more than 30 people for energy storage systems and solar inverter technology. Now we have over 1.5GWh manufacturing capacity for lithium iron phosphate battery packs and 1GW for inverters.
We purchase Haichen cells which is the Top brand in China, and assemble them in our workshop.
CHISAGE ESS welcomes you to test our quality by sample. Samples will be prepared and sent out within 7 working days after the specification is confirmed.
